Application Settings¶

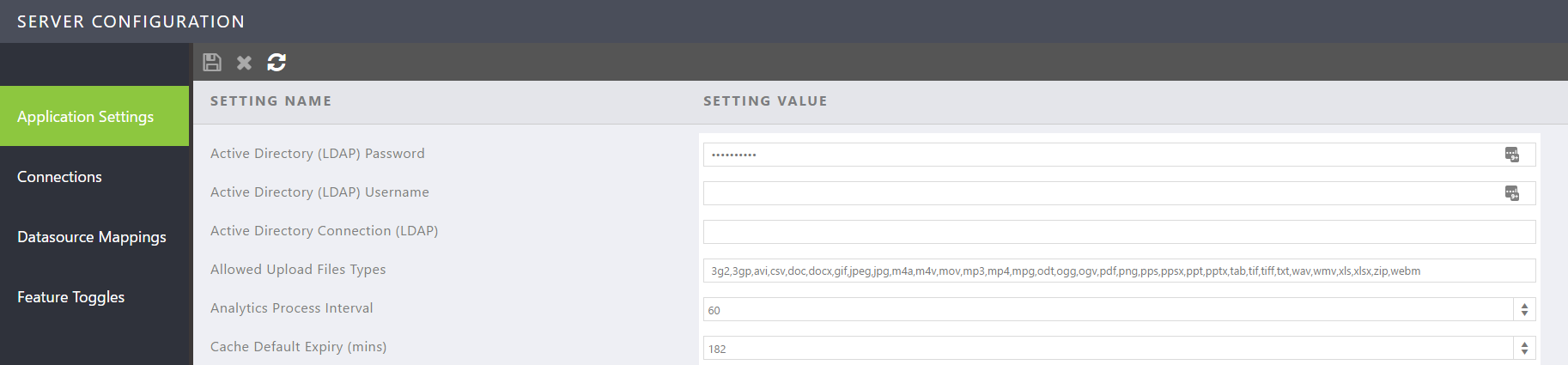

The core set of configuration for CALUMO can be managed from the CALUMO Server Configuration page in the Administration section of the CALUMO Website.
To change a setting, enter the new value in the relevant field and the press TAB or click out of the field and the page will detect that you have made a change, flag the item that was changed and offer to Save or Cancel the change as shown in the screen shot below.
Note
You can make multiple changes at once.
Settings¶
The following details the settings that can be configured in CALUMO along with their defaults and whether they are editable in the Server Configuration UI or only via modification directly in the CALUMO database.
Active Directory Connection (LDAP)¶
The connection string used for to connect to your Active Directory via LDAP.
Active Directory (LDAP) Password¶
The password for the Active Directory account used to perform lookups as users login.
Active Directory (LDAP) Username¶
The username of the Active Directory account used to perform lookups as users login.
Allowed Upload File Types¶
The list of allowed file extensions that can be uploaded into CALUMO using the Upload File functionality in the Library.
Default: 3g2, 3gp, avi, csv, doc, docx, gif, jpeg, jpg, m4a, m4v, mov, mp3, mp4, mpg, odt, ogg, ogv, pdf, png, pps, ppsx, ppt, pptx, tab, tif, tiff, txt, wav, wmv, xls, xlsx, zip
Analytics Process Interval¶
The duration (in seconds) between processing/sending analytic events.
Default: 60
Note
This setting is only editable directly in the CALUMO Database.
Cache Default Expiry (mins)¶
The time (in minutes) that a cached item without an explicit expiration time will live in the cache for.
Default: 5
Cache Max Size (MB)¶
The maximum size the cache is allowed to get to (in megabytes) before it will start expiring the oldest items from the cache to regain space.
Default: 500
Note
This setting is only used when the cache type is InMemory
.
Cache Type¶
The type of cache to use. Valid cache types are InMemory
or Redis
. You can not use the cache type InMemory if you are load balancing your CALUMO Website or you are running more than one IIS worker process.
Default: InMemory
Cache Type Connection String¶
The connection string to use to connect to the cache type selected. NOTE: InMemory will ignore this value as it is not required.
Client Timeout¶
The timeout (in seconds) that the CALUMO Office client will wait for a response from the server.
Default: 60
Create Thumbnails¶
Whether or not to create thumbnails of assets for use on the recent view.
Default: false
Culture¶
The culture that CALUMO requests will run under by default. This can be overridden on a per-user basis.
Default: en-AU
Default Domain¶
The default domain name that user account will sign in using when CALUMO is running in mode.
Drill Through Rows¶
The maximum number of rows returned after a drill-through operation.
Default: 250
Environment¶
This setting determines the mode that the CALUMO Website runs in. In ‘Production’ mode, all optimisations are turned on and the Website is geared for performance. In ‘Development’ mode, all optimisations are turned off and the Website is geared for debugging and detailed issue resolution.
Default: production
Note
This is purely a debug setting and should not be set to true unless directed by CALUMO Support.
Forms Auth Disable Remember Me¶
When CALUMO is running in mode, this setting determines whether users are allowed to use the “Remember Me” options for saving their credentials.
Default: false
Keep Logs For¶
Default: 30
The number of days to keep log entries in the database before purging.
Keep Temp Images For¶
Default: 1
The number of hours to keep temporary images generated by CALUMO.
Max Member Count¶
Default: 1
The maximum number of members returned in a single query.
Office Client Installation Location¶
Default: ClientInstall/CALUMO OfficeClient.exe
The location of the office client installation file on the CALUMO Server. Set to no value to hide the Download Client link for users. Note: This setting can be changed if you want to relocate this file to a more central location for your users.
OLAP Base Http Connection Authentication Password¶
The password of the account with administration access to the OLAP server being connected to via HTTP(s).
OLAP Base Http Connection Authentication User ID¶
The username of the account with administration access to the OLAP server being connected to via HTTP(s).
OLAP Base Http Connection String¶
Default: Provider=MSOLAP.3;MDX Compatibility=2;
The base connection string to use when connecting to an OLAP server via HTTP(s).
OLAP Base Connection String¶
The default connection string for connecting to SQL Server Analysis Services. Read about the Olap Connection String Defaults.
Default: Integrated Security=SSPI;Provider=MSOLAP.3;SSPI=NTLM;MDX Compatibility=2;Optimize Response=2;
OLAP Cache Build Wait¶
The number of minutes the process will wait to complete caching before erroring out.
Default: 2
OLAP Cache Expiry¶
The number of minutes between OLAP Cache refresh actions.
Default: 1
Profile nHibernate¶
Turn on profiling for nHibernate (will severely reduce system performance). Note: This is purely a debug setting and should not be set to true unless directed by CALUMO Support.
Default: false
Note
This setting is only editable directly in the CALUMO Database and should only be enabled if directed to do so by CALUMO Support.
Protocol¶
The default CALUMO web site protocol. Note: This setting will need to be changed if you are using HTTPS.
Default: http
Note
This setting is only editable directly in the CALUMO Database.
Published Reports Cache Timeout¶
The amount of time (in minutes) that a single calculation of a CALUMO Published Report will stay in the Report Cache before being purged.
Default: 60
Published Reports Cached Mode¶
Whether or not the Published Report calculation engine will cache and re-use the cached calculation each time.
Default: true
Query Logging OLAP Duration Threshold¶
The duration (in milliseconds) before a given OLAP query will log to the Query Log.
Use -1
to have all OLAP queries logged
Note
Setting this value to -1 is not advisable for more than a few minutes at a time as the logging of this volume of queries can cause a performance impact on your CALUMO and Database servers
Default: 250
Query Logging SQL Duration Threshold¶
The duration (in milliseconds) before a given SQL query will log to the Query Log.
Use -1
to have all SQL queries logged
Note
Setting this value to -1 is not advisable for more than a few minutes at a time as the logging of this volume of queries can cause a performance impact on your CALUMO and Database servers
Default: 250
Report Image Capture Load Wait¶
The number of seconds the image capture process will wait for a report to return from the server before moving on to the next stage. The process will not wait for the entire length if the report returns from the server before the time has expired.
Default: 30
Report Image Capture Post Load Wait¶
The number of seconds the image capture process will wait once a report has returned from the server before moving on to the next stage to allow assets such as images to be downloaded from the server. This entire duration is waited for and it is recommended this not be more than 5 seconds.
Default: 5
Report Image Capture Snapshot Wait¶
The maximum number of seconds the image capture process will wait for the report to finish rendering before taking the image to allow for dynamic items such as ReportParts or Charts to calculate. The process will not wait for the entire length if there are no dynamic items on the report or they have all registered as completed.
Default: 45
Scan Uploaded Files¶
Default: false
Enable files being uploaded into CALUMO to be saved to a temporary location on disk to enable passive or active virus scanning. Files with a detected threat will not be uploaded.
For details on the two different modes and the way to configure anti-virus scanning on your CALUMO Webserver, read more here
Scan Uploaded Files Check Duration¶
Default: 60
A configurable threshold (in seconds) that will wait for the scanning process to complete before trying to access the file to see if it has been quarantined. Depending on your anti-virus tool, this threshold might need to be as long as 60 seconds.
Scan Uploaded Files External Executable¶
The preferred scanning option is the use of an external CLI tool. This is the path to the command line executable for the anti-virus tool to be used to perform the scan.
Scan Uploaded Files External Arguments¶
The command line arguments to be passed to the executable when run. The value “@filepath@” will be replaced with the temporary file to be scanned.
Site Name¶
Default: specified during installation
The current virtual directory for this instance of CALUMO.
Note
This setting is only editable directly in the CALUMO Database.
Slice Changes to MDX At (cells)¶
The number of cells in a view at which the slice will automatically change to be a CGETMDX
based slice for increased performance.
Default: 2000
Slice Cells Max (cells)¶
The maximum number of cells that can be created from a slice.
Default: 20
SMTP Email From Address¶
The email address to make emails sent from CALUMO.
SMTP Server Password¶
The password for the SMTP server connection.
SMTP Server Port¶
The port for the SMTP server connection
SMTP Server¶
The address of the SMTP server.
SMTP Connect with TLS¶
Whether or not to use a TLS connection when connecting to the SMTP server.
SQL Base Connection String¶
The base SQL Server connection string that CALUMO will use.
Note
This setting is only editable directly in the CALUMO Database.
Stored Procedure Command Timeout¶
Sets the command timeout for stored procedures called by CALUMO.
Default: 60
Stored Procedure Max (rows)¶
The maximum number of rows to be returned from a stored procedure.
Default: 50
Stored Procedure No Cross Join Return Value¶
The value to return to stored procedures if the Cross Join All flag is off and the required conditions are met for not performing a cross join.
Default: 0
Stored Procedure Writeback Timeout (sec)¶
The default timeout for a stored procedure to finish executing.
Default: 30
Support Email¶
The support email that will be used inside the application when people click “Send to CALUMO”. This can be replaced by any email, such as your companies internal IT Help Desk for first level troubleshooting.
Default: calumosupport@insightsoftware.com
Suppress Client Update Notifications¶
Whether or not the CALUMO Office Client will prompt its users that it is out of date and needs to be updated. You would want to set this to true
if you are rolling the client out via a tool like SCCM or if you deploy the client via Citrix.
Default: false
Tabular Deployment Servers¶
A list of Analysis Services Tabular servers that you want to make available as deployment sources for Power Pivot models from the CALUMO Excel Client.
Temp Image Cleanup (hours)¶
The number of hours an image generated from a given calculation of a Published Report will be cached for on the server.
Default: 30
View Cache Cells Max¶
The maximum number of cells in the view query result that we will cache before we move to a live query for subsequent pages.
Default: 1000
Views Cache Results¶
Whether or not to cache subsequent pages of view result sets on the server.
Default: true
View Columns¶
The max number of columns that will be displayed in a CALUMO View.
Default: 100
View Rows¶
The max number of rows that will be displayed in a CALUMO View.
Default: 5
Legacy Settings¶
These settings are no longer used in the current version of CALUMO and are here for informational purposes only.
Dimension Maintenance Enabled¶
Legacy - this is no longer required as of CALUMO 12.1.4+. Whether or not the dimension maintenance button is enabled in the CALUMO Excel Client
Default: false
Dimension Maintenance Report Name¶
Legacy - this is no longer required as of CALUMO 12.1.4+. The CALUMO Report name that is providing dimension maintenance functionality.
OLAP Servers¶
Legacy - This is no longer used as of CALUMO 2020.1.2 - The list of Analysis Services servers, separated by a pipe
e.g. "server1.domain.com\instancename | server2.domain.com"
Super User Admin Password¶
Legacy - The backup admin password CALUMO.
Super User Admin Name¶
Legacy - The admin user name.
